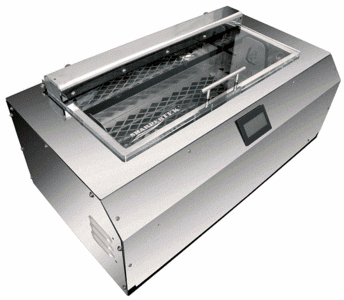

SteraClean STM1100 Ultrasonic Surgical Cleaner
SteraClean™ STM1100
Table Top Model
Specifications:
- Type of Parts; Cannulated, Robotic and Non-Cannulated instruments
- Ultrasonic Frequency: 40KHz
- Tank Size: 35"x12"x8"
- Number of Irrigation ports per tank: 12
- Robotic Instrument Capacity per tank: 12
- Automatic Lumen Irrigation with Feedback Pressure Control.
- Vertical Manifold Quick connect
- HMI/PLC (controls + programming)
- Tank Heat
- Number of baskets included: 1
- Tray weight capacity: 20 Pounds
| MODEL | STM1100 |
| Overall Cabinet: | 40" L x 19" W x 22" H |
| Working Height: | Table Top Unit |
| Dry Weight: | 80 Pounds |
| Operating Weight: | 150 Pounds |
| SONIC CLEANING CHAMBER | |
| Overall Size: | 28" L x 12" W x 10" |
| Liquid Volume: | 10 Gallons |
| Effective Liquid Depth: | 6" |
| Maximum Tray Size: | 27.5" L x 11" W x 4" High |
| Maximum Load: | 35 Pounds (15.9 kg) |
| ULTRASONICS | |
| Transducer Type: | Piezoelectric |
| Quantity: | 20 |
| Tank Bonding: | Various |
| Generator Output: | 1000 Watt |
| Frequency: | 40 / 135 KHz |
BENCHTOP BASIC MODEL
- V Bottom Tank Size: 28" X 11.6" X 10" (LWH )
- Dual Frequency 40 KHz / 135 KHz Ultrasonic
- Heat
- Hinged Lid
- LED Display for heat and ultrasonic timer
- Cannulated Flushing 14 Port
- Fused power entry module
- Adjustable Feet Height
- Drain
- Fill Port
BENCHTOP OPTIONS
- HMI Controls includes the below:
- Hot / Cold Inlets
- Programmable recipes
WARRANTY
SharperTek USA, Inc. warrants that each ultrasonic cleaner is carefully
inspected and tested to specifications, and leaves the factory in proper working
order, free of visible defects. Each ultrasonic cleaner is warranted for one
year and includes parts and labor (excluding expendable parts), from the
prescribed Start of Warranty. Applies only to Domestic U.S.A., Puerto Rico and
Canadian shipments.

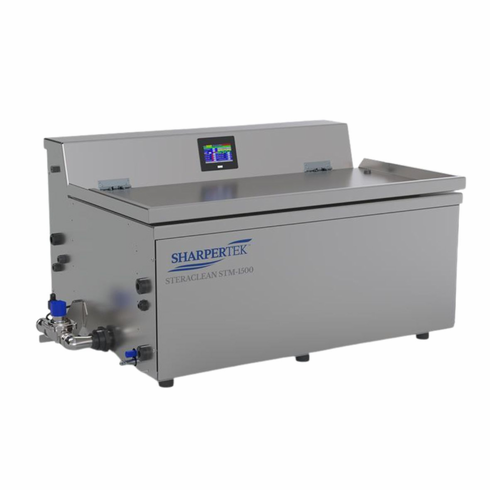

STM1100 & STM1500 Catalogue
